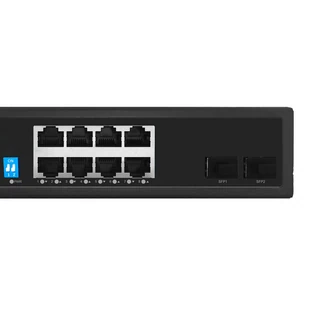

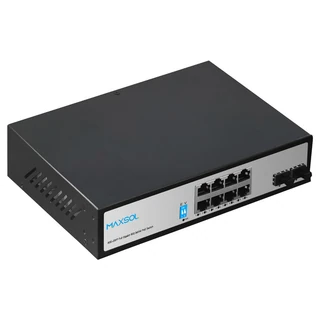

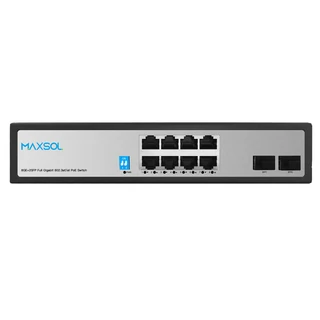

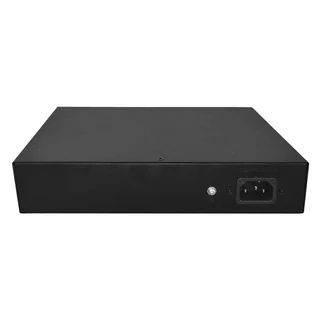

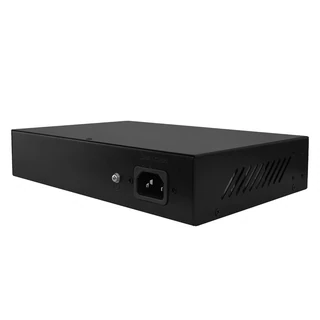

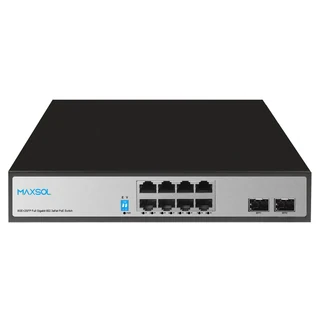

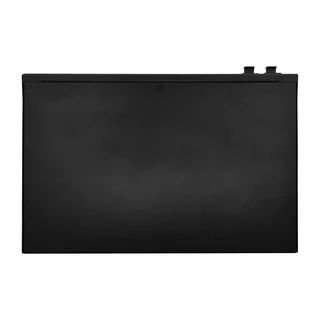

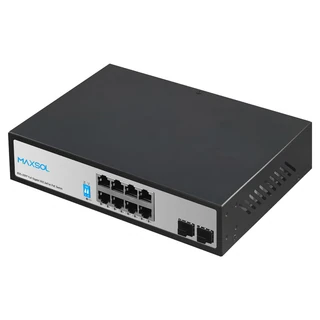

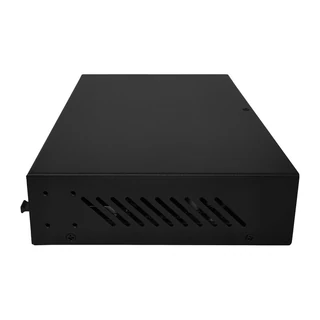

Model: PS1802SFG
8-Port Gigabit PoE+ Switch, 2 SFP Uplinks
Industrial 8-Port Gigabit PoE+ switch featuring 120W budget and 2 SFP slots. Supports VLAN and AI Watchdog. Reliable networking solution for system integrators.
Key features
- 8GE+2GF Full Gigabit PoE Switch
- Ports 1–8 support IEEE 802.3af/at PoE, up to 30W per port
- Supports smart watchdog, VLAN, and Extend mode
- Internal 120W power supply included
- Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
- Wire-speed forwarding on all ports
- Supports desktop, wall-mounted, and rack-mount installation
Specification
Interfaces
- Model
- PS1802SFG
- Fixed Port
8 * 10/100/1000Base-T/TX PoE ports (Data/Power)
2 * 10/100/1000Base-T/TX SFP Ports (Data)
PoE
- PoE Port
- Port 1-8 support PoE
- Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300 meters transmission and auto speed change of single port (limit 10 Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale.
- Network Protocol
IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T;
IEEE 802.3u 100Base-TX;
IEEE 802.3ab 1000Base-T;
IEEE 802.3x
- Ethernet Port Feature
- 10/100 Base-T(X), 10/100/1000 Base-T automatic detection; full/half Duplex; MDI/MDI-X adaptive
- Fiber Port Feature
- Gigabit SFP Port (Fibre module is not included, need to order separately; module options include single/multi-mode, single/dual fiber, LC)
- Forwarding Mode
- Store and Forward
Switch Property
- Switching capacity
- 22Gbps
- Buffer Memory
- 4M
- MAC
- 4K
- Forwarding Rate
- 16.368Mpps
- Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- Default 1/2 (+), 3/6 (-);
- MAX / AVERAGE Power Per Port
- 30 W / 15.4 W
- Total PWR / Input Voltage
- 120W
- Power Consumption
Standby: <2 W
Full load: <120 W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green); Network indicator: 1–8(Link/Act) (Green), 9–10(Link/Act) (Green)
- Power Supply
- Build-in power adaptor AC100~240V, 50-60Hz, 120W
- Operation TEMP / Humidity
- -20~+55°C; 5%~90% RH non-condensing
- Storage TEMP / Humidity
-40~+75°C
5%~95% RH non-condensing
- Dimension
- 220 * 145 * 45 mm
- Net /Gross Weight
<1 kg / <1.2 kg
- Installation Method
- Desktop type, wall mounted
- Protection
IEC 61000-4-2 (ESD): ±8 kV contact discharge, ±15 kV air discharge
IEC 61000-4-5 (Lightning protection/Surge): Power: CM ±4 kV / DM ±2 kV; Port: ±6 kV
- Protection Level
- IP30
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
