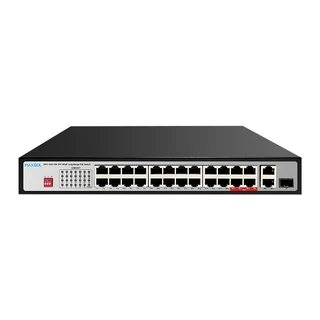

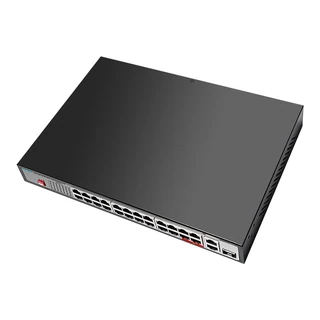

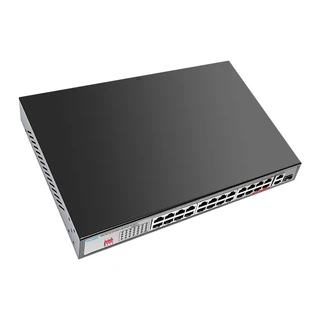

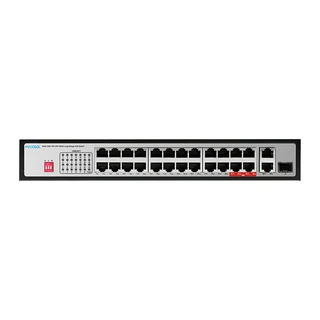

Model: PS12402FE
24-Port Hi-PoE Switch with Gigabit and SFP Uplinks
24-port Fast Ethernet PoE switch with 60W Hi-PoE support, 2 Gigabit RJ45 uplinks, 1 SFP slot, VLAN isolation, Extend mode and watchdog.
Key features
- 24FE+2GE+1GF Uplink HiPoE 300M Long Range PoE Switch
- Supports smart watchdog function to monitor compliant PD
- Port 21-24 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
- Port 1-20 supports PoE 30W fit IEEE 802.3af/at compliant PDs
- Support VLAN
- Internal power adapter supply 300W (included)
- Support port priority
Specification
Interfaces
- Model
- PS12402FE
- Fixed Port
- 24*10/100Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX Uplink RJ45 ports (Data) 1*100/1000Base-X uplink SFP fiber slot (Data)
PoE
- PoE Port
- Ports 1–20: IEEE802.3af/at; ports 21–24: IEEE802.3bt, up to 60W
- PoE Standard
- PoE Ports support @IEEE802.3af/at/bt
- DIP Switch 3-Mode Function
E – Extend Mode: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M within 100 meters;
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10Base-T;IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T;IEEE802.3z 1000base-X;IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) 10/100/1000 Base-T automatic detection;full/half Duplex MDI/MDI-X adaptive .
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 10.8Gbps
- Forwarding Rate
- 8.04Mpps
- MAC Address Table
- 2K
- Buffer Memory
- 2M
- Jumbo Frame
- 1512 byte
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- AF/AT:1/2(+),3/6(-);Hi PoE:1/2(+),3/6(-),4/5(+),7/8(-)
- MAX / AVERAGE Power Per Port
- Port 1-20: 30W/15.4W; Port 21-24: 60W/30W/15.4W.
- Power Budget
- 300W
- Power Consumption
- Standby:<5W; Full load:<300W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green); Network indicator:1-27(Link/Act)/(Green).

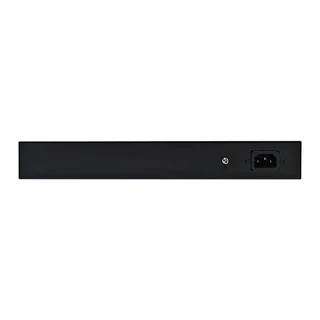

- Power Supply
- Build-in power supply AC100~240V 50-60Hz.
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 310*205*45mm
- Net /Gross Weight
- <3kg / <4kg
- Installation Method
- desktop type, wall mounted,1U rack mount.
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30

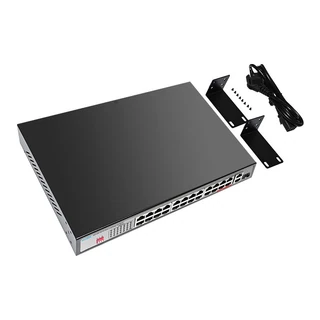

Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
Interfaces
- Model
- PS12402FE
- Fixed Port
- 24*10/100Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX Uplink RJ45 ports (Data) 1*100/1000Base-X uplink SFP fiber slot (Data)
PoE
- PoE Port
- Ports 1–20: IEEE802.3af/at; ports 21–24: IEEE802.3bt, up to 60W
- PoE Standard
- PoE Ports support @IEEE802.3af/at/bt
- DIP Switch 3-Mode Function
E – Extend Mode: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M within 100 meters;
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10Base-T;IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T;IEEE802.3z 1000base-X;IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) 10/100/1000 Base-T automatic detection;full/half Duplex MDI/MDI-X adaptive .
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 10.8Gbps
- Forwarding Rate
- 8.04Mpps
- MAC Address Table
- 2K
- Buffer Memory
- 2M
- Jumbo Frame
- 1512 byte
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- AF/AT:1/2(+),3/6(-);Hi PoE:1/2(+),3/6(-),4/5(+),7/8(-)
- MAX / AVERAGE Power Per Port
- Port 1-20: 30W/15.4W; Port 21-24: 60W/30W/15.4W.
- Power Budget
- 300W
- Power Consumption
- Standby:<5W; Full load:<300W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green); Network indicator:1-27(Link/Act)/(Green).
- Power Supply
- Build-in power supply AC100~240V 50-60Hz.
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 310*205*45mm
- Net /Gross Weight
- <3kg / <4kg
- Installation Method
- desktop type, wall mounted,1U rack mount.
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
