Solar Power for CCTV: Pre-Deployment Checklist

A reliable solar CCTV project starts with evidence, not a panel-and-battery estimate. Before procurement, document every day and night load, confirm camera and network interfaces, survey the site during the least favourable solar period, define autonomy and recovery targets, and plan how technicians will monitor and maintain the installation.

This solar power for CCTV deployment checklist focuses on the decisions that must be settled before equipment is ordered. It does not replace detailed electrical sizing. For the calculation process, use this guide to sizing an off-grid solar power system for CCTV after completing the site and load review below.

Document cameras, recording and backhaul loads

Start with a complete load schedule covering everything powered by the solar system. Camera nameplate wattage alone is not enough because illumination, heaters, wireless radios, recorders and conversion losses can substantially change the energy requirement.

Create one line item for every device:

Cameras, including infrared or white-light operation
Pan-tilt-zoom motors, wipers and heaters where fitted
PoE switches, injectors and DC converters
Wireless CPE, access points or mobile routers
Network video recorders, storage devices or edge computers
Environmental sensors, relays and alarm equipment
Enclosure fans, heaters or other thermal controls
Charge controllers and always-on monitoring devices

For each load, record its input voltage, typical power, maximum power, operating hours and whether consumption changes at night.

Measure day and night modes separately

Many CCTV cameras consume more power after dark when infrared LEDs switch on. A camera with motorised movement may also create brief but important peaks. If the project team uses only daytime figures, the design may understate both overnight energy consumption and converter capacity.

Where possible, obtain measured readings from the actual camera configuration. Test the intended resolution, frame rate, illumination mode, analytics and PTZ activity rather than relying only on a broad catalogue range.

Record at least:

Load condition	Evidence to collect	Why it matters
Normal daylight	Input voltage, current and watts	Establishes the basic daytime load
Night illumination active	Voltage, current and watts	Defines the overnight demand
Start-up or reboot	Peak current and boot duration	Helps identify voltage-drop and restart risks
PTZ movement or heater active	Maximum observed watts	Checks converter and cable capacity
Network under traffic	Radio, switch and recorder power	Reveals loads missed during idle testing

Add a realistic allowance for conversion and wiring losses, but keep the allowance visible rather than hiding it inside device estimates. That lets reviewers distinguish measured demand from design assumptions.

Decide where recording takes place

Recording architecture changes both power consumption and network requirements. Before procurement, confirm whether footage will be stored:

On a memory card in the camera
On a local NVR or edge recorder
At a remote control room
In a cloud or hosted platform
In more than one location for redundancy

Local recording can reduce continuous backhaul traffic, but the camera or recorder still requires power and accessible storage maintenance. Remote recording may remove the local recorder load while making backhaul stability and throughput more critical.

Document the required retention period, bitrate, number of streams and behaviour during a network outage. Confirm whether footage buffers locally and uploads later, or whether loss of the link creates a recording gap.

Characterise the backhaul load

For a wireless backhaul, record the radio power in idle and active conditions, not just the camera bitrate. Include both ends of the link in the overall system architecture, even if only one end is solar-powered.

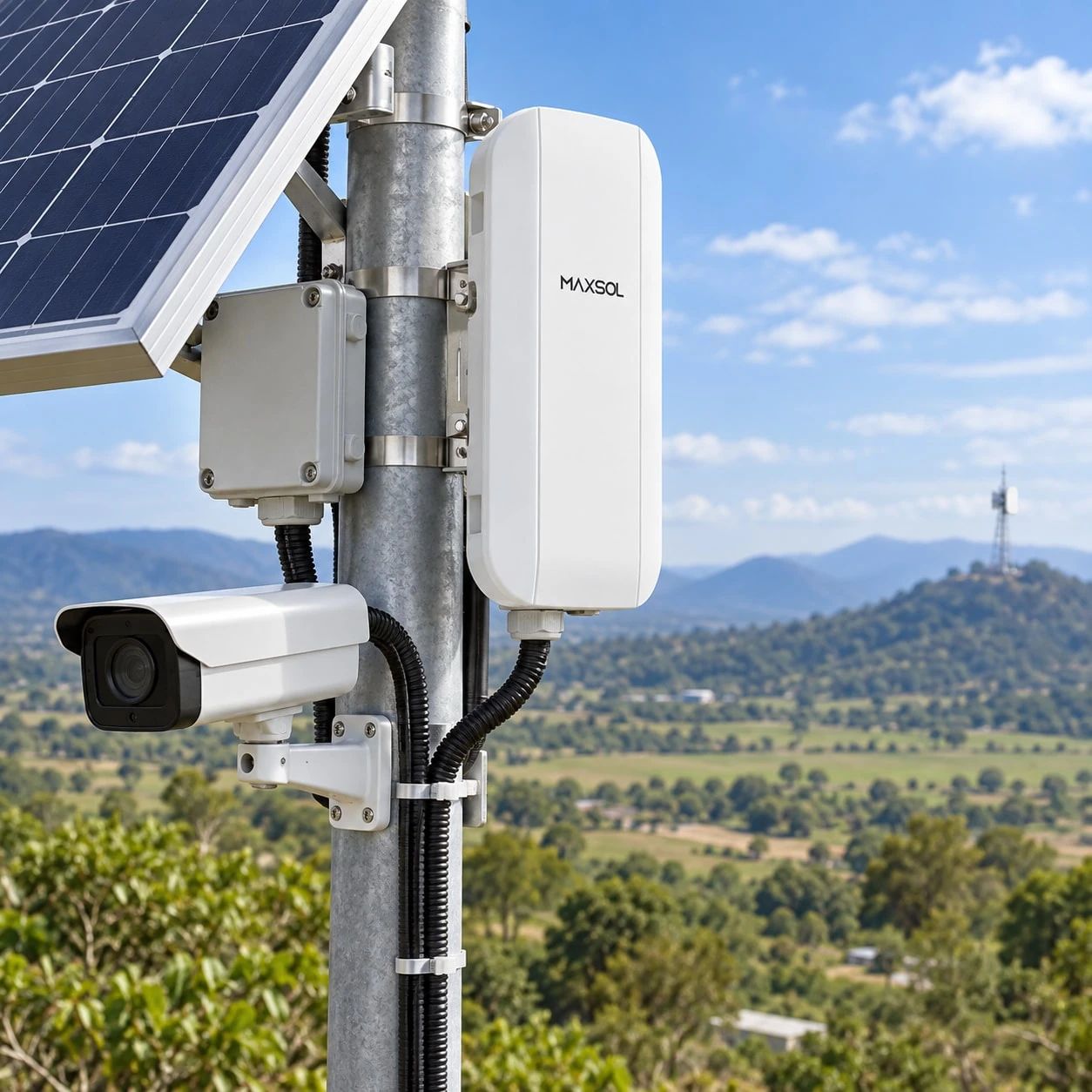

A product such as the Maxsol CPE295 5.8GHz wireless CPE can be assessed as one architecture example. Its documented features include 5.8GHz operation, a 2x2 14dBi directional MIMO antenna, one Gigabit LAN port, IEEE 802.3af/at or 9–48V DC power support, and 6.5W full-load consumption. Range and rate labels do not guarantee usable throughput at a specific site, so a path survey and link test remain necessary.

Survey shade, mounting and environmental exposure

A solar survey must evaluate the design month—the period when available solar energy is expected to be least favourable—not just conditions on the installation date. In the Philippines, prolonged cloud cover during the wet season can matter more than a clear-day reading taken during commissioning.

Collect the following site evidence:

Solar access at several times of day
Seasonal shadows from trees, poles, buildings and terrain
Panel direction, tilt and unobstructed sky view
Proposed mounting height and structure
Cable routes and cable lengths
Flooding, drainage and standing-water risks
Wind exposure and mounting vibration
Rain entry paths and wind-driven rain
Salt-laden air or corrosive exposure near coastal sites
Dust, vegetation, insects and animal interference
Ambient temperature around the battery and electronics enclosure
Access for panel cleaning and vegetation control

Photographs should be marked with date, time, direction and the proposed equipment position. A site drawing should identify the panel, enclosure, cameras, grounding route, radio direction and maintenance approach.

Check for shade beyond the panel location

A panel may be clear at noon but shaded during the morning or late afternoon. New construction and vegetation growth can also change solar access after installation. Inspect the full sun path where practicable and identify objects likely to create future shade.

Do not assume that moving the panel automatically solves the problem. A longer panel-to-controller cable can increase voltage drop and may require a different conductor size. Record the proposed distance before selecting cables and protective devices.

Inspect camera and radio mounting positions

Solar access is only one part of the survey. Confirm that the camera has the required field of view and that a directional radio has a viable path towards the far endpoint. Foliage, roof edges, terrain and structures can obstruct or degrade a wireless link.

The selected mounting point must also provide enough rigidity for camera stability and radio alignment. A panel, camera and directional radio may experience different wind forces, so each mounting arrangement needs a site-appropriate structural review.

For a broader architecture sequence, see the practical guide to building a solar-powered CCTV system for remote areas.

Confirm voltage, PoE and data interfaces

Compatibility must be demonstrated device by device. “PoE camera” is not a complete interface specification because equipment can differ in voltage, negotiation method, polarity, pinout and maximum power.

Prepare an interface matrix covering:

Connection	Confirm before ordering
Battery to controller	Nominal voltage, operating range, polarity and protection
Controller to DC load	Output voltage, connector, current limit and load priority
DC converter to camera	Input range, output voltage, polarity, pinout and power limit
PoE switch or injector to camera	PoE standard or passive method, required power and port assignment
Camera to network	Ethernet speed, addressing, VLAN and management needs
Radio to network	LAN interface, power method and surge-protection arrangement
Recorder or edge device	Voltage, storage interface, bandwidth and start-up demand

Do not treat passive and negotiated PoE as interchangeable

Some converters place a selected voltage onto Ethernet conductors without performing standards-based negotiation. Other devices expect IEEE PoE detection and classification before accepting power. Connecting incompatible equipment can result in failure to start or possible equipment damage.

The Maxsol POE24V DC-to-PoE converter accepts 12–36V DC and provides an adjustable 12–57V PoE output, Gigabit Ethernet and an LCD voltage display. Its documented continuous load when converting 12V to 48V is no more than 30W.

Those facts do not establish IEEE PoE negotiation. Before pairing it with any camera or network device, verify:

Required output voltage
Positive and negative polarity
Powered-pair pinout
Passive or negotiated PoE protocol
Continuous and peak load
Cable length and voltage drop
Ethernet speed requirement

Performing this check on paper before procurement is safer than discovering an incompatible power interface on site.

Verify the complete voltage path

Check the full operating range, not only nominal values. Battery voltage changes with state of charge, charging conditions and load. The DC converter, camera and radio must remain within their permitted input ranges throughout the intended operating window.

Also confirm restart behaviour after a low-voltage cut-off. Some devices resume automatically, while others may require manual intervention or may boot in an undesirable sequence.

Set autonomy, recovery and load-priority objectives

Autonomy is the planned period that the system should support defined loads without adequate solar input. It must be a written project objective, not an assumed number of “backup days”.

Define:

Which services must remain active during low-energy conditions.
How long those services are expected to operate.
Which loads may be reduced or disconnected first.
What battery reserve should remain before shut-down.
How the system should recover when solar input returns.
Whether intervention is required after a protective cut-off.

Avoid describing autonomy without stating the load. “Two days of backup” is incomplete if it is unclear whether that includes cameras, night illumination, radio backhaul, local recording and enclosure accessories.

Establish a load-priority plan

A practical priority order might distinguish:

Critical loads: essential cameras and alarm communication
Operational loads: wireless backhaul and local recording
Deferrable loads: non-essential lighting or scheduled uploads
Maintenance loads: service equipment used only during technician visits

The correct order depends on the security objective. For example, disconnecting backhaul while retaining local recording may be acceptable at one site but unsuitable where live monitoring is essential.

Separate autonomy from recovery

A battery may support the required load through poor weather but remain at a low state of charge afterwards. The panel must then power the live load and provide enough surplus energy to recharge the battery.

Record the target recovery condition, such as the desired recharge period following the design autonomy event. This requirement affects panel and controller selection even when battery capacity is unchanged.

The Maxsol CS12060 120W solar system documents a 120W monocrystalline panel, 12.8V 60Ah 768Wh LiFePO4 battery, MPPT controller and three DC 12V outputs. These specifications can be compared against a measured load profile, but they do not establish universal CCTV runtime. Actual autonomy and recovery depend on load, solar input, losses, operating limits, temperature, shading and configuration.

The linked solar system, converter and wireless CPE are architecture examples, not a tested compatible bundle. Their voltage, power, protocol and environmental suitability must be reviewed as an integrated design.

Plan monitoring, maintenance and physical access

A remote CCTV system needs a way to distinguish a power problem from a network, camera or recording problem. Define monitoring points before selecting equipment and finalising the enclosure.

Useful power data may include:

Panel or charging status
Battery voltage and state information available from the selected system
Load current or power
Low-voltage events
Controller alarms
Device restart history
Enclosure temperature

Useful network data may include:

Camera reachability
Packet loss and latency
Wireless signal and link quality
Port status and negotiated speed
Recording continuity
Storage status
Last successful image or stream check

Confirm how this information will be accessed. Remote monitoring is valuable, but it should not be the only service path. Technicians may need local test points, labelled connectors, a management port or safe access to individual circuits.

Design for maintainability

Before installation, check that a technician can safely:

Clean the panel without removing the camera
Reach the battery and controller
Inspect fuses, breakers and surge-protection components
Measure voltage and current
Replace a device without disturbing unrelated wiring
Realign a radio while viewing link data
Access storage media or the recorder
Isolate power before servicing
Control vegetation around the panel and line of sight

Allow space for cable bends, gland entry, drip loops, labelling and test instruments. A tightly packed enclosure may look efficient but can make fault isolation and component replacement difficult.

Maintenance planning should also assign inspection intervals according to site conditions. Locations exposed to heavy dust, vegetation, salt air or frequent wind-driven rain may require different inspection activities from sheltered sites. Set the schedule from observed conditions and equipment documentation rather than using one interval for every deployment.

Commission with measured energy and network evidence

Commissioning should show that the installed system matches the design assumptions. A power-on check proves only that the equipment can start under the conditions present at that moment.

Create a commissioning record that includes:

Power-system evidence

Panel open-circuit and operating measurements where appropriate
Controller status and configuration
Battery voltage before and after a defined test period
Total day and night load
Camera load with illumination active
Peak demand during boot or PTZ operation
Converter input and output voltage
Voltage at the far end of long cable runs
Low-voltage disconnect and restart settings
Correct polarity, protection and circuit labels

Measurements should state the time, weather, active loads and instrument used. An unexplained voltage reading is less useful than a reading tied to a known operating condition.

Do not use a radio’s advertised distance or data-rate label as commissioning evidence. Record the installed link’s actual measurements and confirm that it supports the intended streams with appropriate operating margin.

Handover evidence

The final project file should contain:

Approved load schedule
Solar and shade survey
Site photographs and mounting plan
Electrical and network diagrams
Device settings and firmware records
Cable and port labels
Protection and grounding plan
Commissioning measurements
Maintenance instructions
Spare-parts and replacement procedure
Known limitations and unresolved issues

Keep passwords and sensitive network details in an appropriately controlled record rather than an unrestricted handover document.

Common pre-deployment mistakes

The most frequent problems arise when teams procure hardware before resolving basic design evidence. Watch for these errors:

Sizing from camera wattage while excluding radios, converters and recorders
Using daytime camera consumption for a 24-hour calculation
Assuming every PoE-labelled device is electrically compatible
Relying on a clear-day solar reading instead of reviewing the design month
Treating advertised wireless range as proof of site performance
Selecting battery capacity without a recovery objective
Ignoring cable voltage drop
Failing to define what disconnects first during low energy
Installing an enclosure with no safe maintenance space
Commissioning only in daylight
Handover without measured power, link and recording results

Final procurement checklist

Before releasing a purchase order, verify that the project file answers all of these questions:

What is the measured 24-hour energy demand?
What is the maximum simultaneous load?
Which loads change after dark?
Where is footage recorded, and what happens during a link outage?
Is the wireless path surveyed and testable?
What are the least favourable expected solar and shade conditions?
Are voltage, polarity, pinout and PoE protocol confirmed?
What autonomy and recharge objectives have been approved?
Which loads are critical, reduced or disconnected first?
Can power and network status be monitored?
Can technicians safely access and isolate each component?
What measurements will demonstrate successful commissioning?

Once these answers are documented, compare the linked Maxsol models against the project’s actual port count, measured load, link distance, power interfaces, environmental conditions and management requirements. Select components only after confirming that they work together as a complete site-specific architecture.
